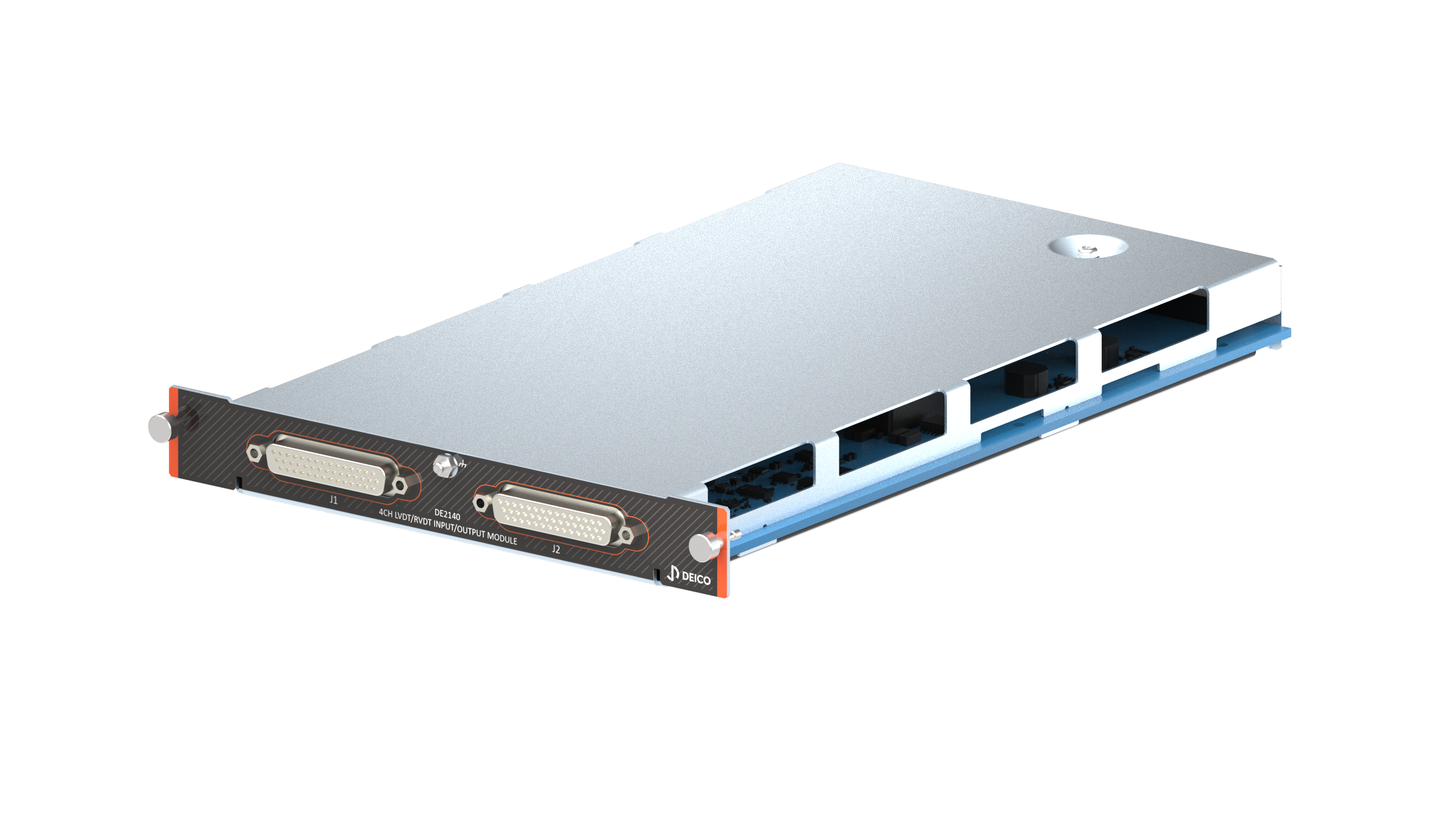

LVDT/RVDT Input/Output Module

PART NUMBER : DE2140
The DE2140 is a 4-channel LVDT/RVDT module with 16-bit resolution, offering configurable wiring, a wide frequency and current range, full isolation, and compatibility with switching and DAQ mainframes.
Add to Quote
Overview

The general features of DE2140 are listed below:

  • 4 channel LVDT/RVDT input channels/simulated outputs
  • 16-bit resolution
  • 4, 5 and 6-wire configuration ability
  • 100Hz to 10kHz excitation frequency range
  • Up to 50mA excitation current
  • Fully isolated (channel to channel and channel to mainframe)
  • Compatible to be used with LXI Switching and DAQ Mainframe (8 slot) (DE2000) and LXI Single Module Mainframe (DE2001)
