SLSC Amplifier Module 20MA

PART NUMBER : DE9004

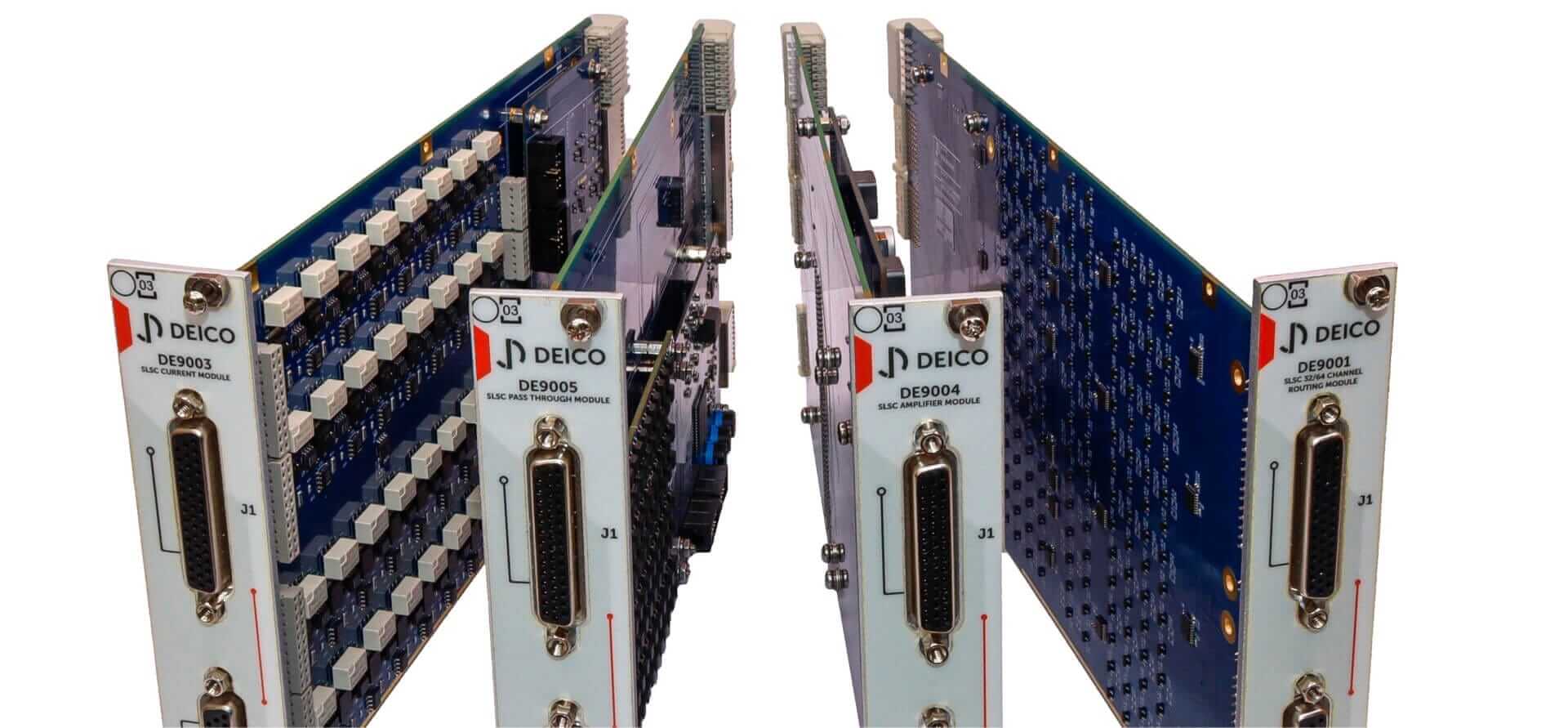

DE9004 SLSC Amplifier Module 20MA is a 24-channel signal amplifier that is used in the SLSC chassis and connected to test equipment and DUTs. There are 6 types of amplifier block with different gain on it. Signal outputs are relay controlled. Relays are controlled by the controller block. SLSC chassis is necessary for module usage.

Overview

The general features of DE9004 are listed below:

24 channels
Signal amplification with 6 different gains
High slew rate
Low signal noise
Wide bandwidth
Wide operating voltage
Relay controlled outputs
SLSC chassis compatible

DE9004 is compatible with IEC 60068-2-1/ IEC 60068-2-2/ IEC 60068-2-78/ IEC 60068-2-27/ IEC 60068-2-64/ EN 61326 (IEC 61326) / EN 55011 (CISPR 11) / AS/NZS CISPR 11/ FCC 47 CFR Part 15B/ ICES-001 standards.

Areas of application include:

HIL Testing
Signal Amplification

Specifications

Electrical

Specification	Minimum	Maximum	Typical	Notes
Input Voltage	10V	24V	50V	―
Input Current	―	―	2A	2A@30VDC 0.27A@220VDC 0.5A@125VAC
Slew Rate	―	24V/US	―	―
Total Harmonic Distortion + Noise	―	-120dB	―	―
Bandwidth	―	10MHz	―	―
Output Current per Channel	―	―	20mA	―
Amplifier Channel	―	4 11 2 2 1 4	―	Type 1 Type 2 Type 3 Type 4 Type 5 Type 6
Amplifier Gain	―	1.423 (fixed) 2 (Fixed) 3.14 (fixed) 9 (fixed) 4.16 (fixed) 9 (fixed)	―	Type 1 Type 2 Type 3 Type 4 Type 5 Type 6
Amplifier Operating Voltage	-100V	―	100V	All types

Physical

Specification	Typical	Notes
Dimensions	144.32mm x 30.48mm x 302 mm	SLSC Standard Dimensions
Front Panel Connectors (2x)	HD44F	MPN: 2311770-1

Environmental

Specification	Condition	Value
Operating Humidity	Relative, non-condensing	10% - 90%
Storage Humidity	Relative, non-condensing	5% - 95%
Operating Temperature	Forced-air cooling from chassis	0 C° - 40 C°
Storage Temperature	Non-operational	-40 C° - 85 C°
